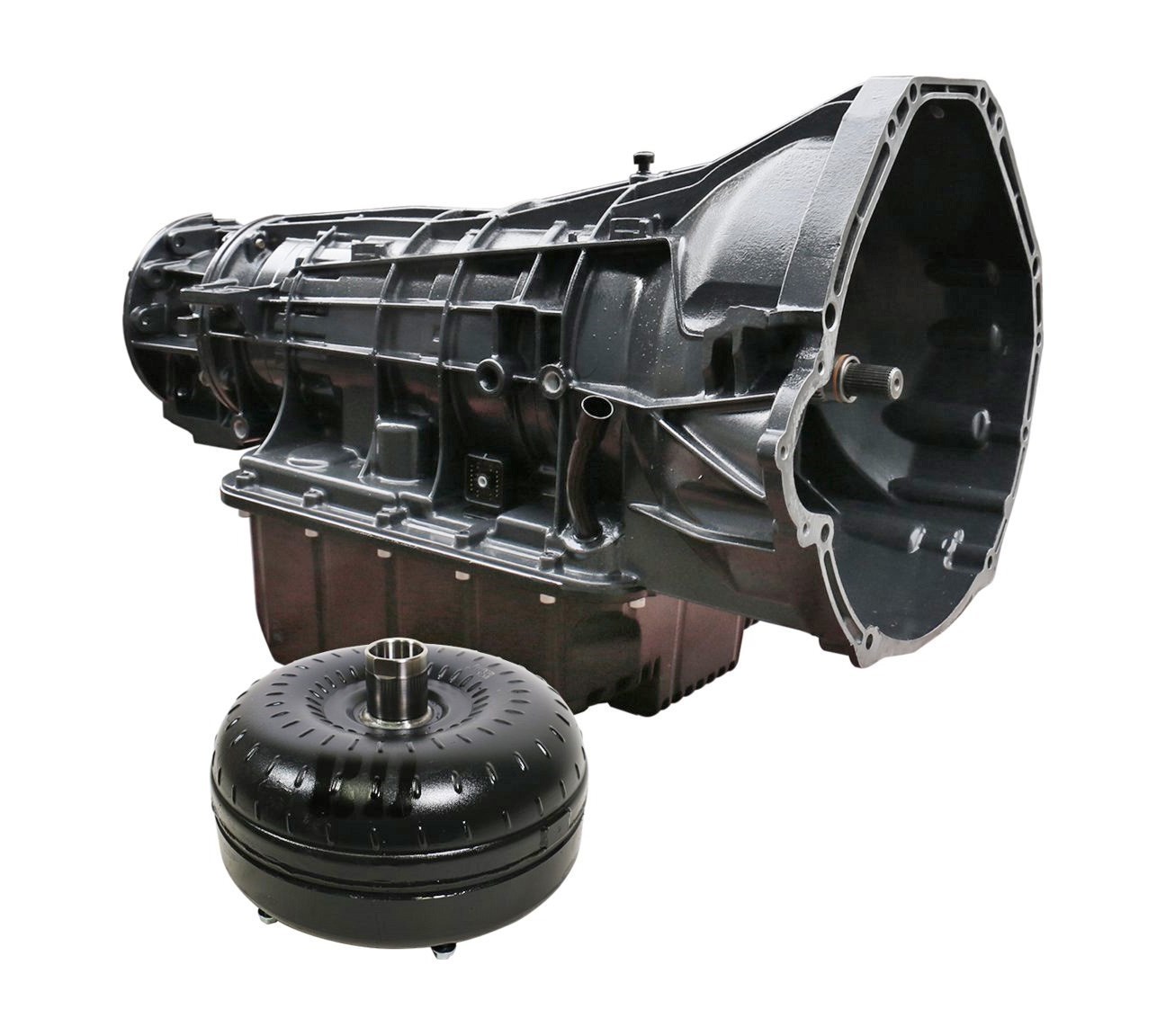

1064484SM BD Diesel TowMaster 5R110 Transmission & Converter Package - Ford 2005-2007 4WD

SKU: BD1064484SM

Mftr. Part#: 1064484SM

UPC: 990011407038

Delivery date: Manufacturer Build On Demand - Contact For ETA

Increase the durability of your drivetrain with BD's heavy duty 5R110 transmission, matched with an enhanced stall billet Torque Converter, dyno tested together in a complete package for your 2005-2007 Ford Powerstroke 6.0L 4WD turbo diesel. A $2400.00 refundable core charge will apply.

PRODUCT DETAILS (click to expand)

Mftr. Part#	1064484SM
UPC	990011407038
Weight (lbs.):	290.00 lbs.
Dimensions:	27.30" x 23.50" x 44.50"

PRODUCT SPECS (click to expand)

Attribute name	Attribute value
Has Core Charge	Yes
Product Type	Transmission, Torque Convertor
2WD/4WD	4WD
Transmission Type	5R110
Convertor Stall	Enhanced
Includes Auxiliary Filter Kit	No

PRODUCT OPTIONS

Since this is a remanufactured product, a temporary "core charge" is added up front until we receive your original unit back. Once received and inspected, the charge will be reversed back to you. The core charge will be added to the price below. (Required): Add Core Charge [+$2,400.00]

$6,730.00

Qty:

When you purchase a BD Transmission and Torque Converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD’s own Heavy Duty pan that adds extra fluid capacity and case strength. For towing, street or track, when it comes to a dependable transmission and converter that will stand up to your diesel’s power and torque demands, the clear choice is BD.

Transmission Overview

Increase the durability of your drivetrain
BD aluminum HD deep pan, increases oil capacity by 6qt
Upgraded sump filter
Replace plastic pressure plugs in valve body with aluminum
Heavy duty snap ring and blow-off valve to prevent runaway pressure damaging case
Reworked front pump
Clutch Count: COAST CLUTCH 3
Clutch Count: FORWARD 4
Clutch Count: LOW REVERSE 6
Clutch Count: INTERMEDIATE 5 (67% increase over stock)
Clutch Count: DIRECT 6 (20% increase over stock)
Clutch Count: OVERDRIVE 5 (67% increase over stock)
Each transmission is dyno tested

Torque Converter Overview

Enhanced Stall - Street/Towing applications
Torque multiplying cast aluminum stators
Lower rpm response than the stock converter
More efficient operation
Less heat and better fuel economy
Stamp-forged steel front cover
Furnace-brazed fins
Up to triple the amount of lock-up clutch material

Warranty

Parts

36-Months
150,000 Miles

Labour

24,000 miles
12-Months

Note

No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
Transmission must be installed by authorized dealer or warranty is VOID
